Save ₱2,100.00

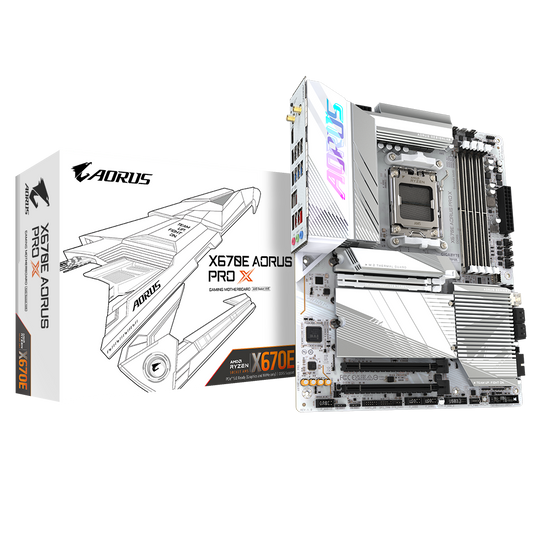

GIGABYTE GA-X670E-AORUS-PRO-X | 4 DIMM SLOTS | DDR5 | REALTEK AUDIO | INTEL 2.5 GBE LAN | WIFI 7 | PCI-E 5.0 | PCI-E 5.0 M.2 | AM5 | 12 MONTHS WARRANTY | MOBOARD

₱23,497
₱25,597
₱22,674.00 Discounted Price OR Freebie
₱23,497.00 3 Months 0% or Straight Credit Card ( ₱7,832.00 / Mo.)
₱26,904.00 12 Months Credit Card ( ₱2,242.00 / Mo.)
CARRY-IN WARRANTY
Makotek customers are responsible for sending or mailing the item for repair and thereafter, picking up the repaired item themselves.
Ask a Question

For Pre-Order fill-up this form

Guarantee Safe Checkout

GIGABYTE GA-X670E-AORUS-PRO-X | 4 DIMM SLOTS | DDR5 | REALTEK AUDIO | INTEL 2.5 GBE LAN | WIFI 7 | PCI-E 5.0 | PCI-E 5.0 M.2 | AM5 | 12 MONTHS WARRANTY | MOBOARD
GIGABYTE GA-X670E-AORUS-PRO-X | 4 DIMM SLOTS | DDR5 | REALTEK AUDIO | INTEL 2.5 GBE LAN | WIFI 7 | PCI-E 5.0 | PCI-E 5.0 M.2 | AM5 | 12 MONTHS WARRANTY | MOBOARD
₱23,497
₱25,597

Key Features

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series / Ryzen™ 8000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click：M.2 heatsinks with screwless design
  • EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
  • Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
  • UC BIOS：User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage：4*M.2 slots, including 2* PCIe 5.0 x4
  • Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
  • Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • Extended Connectivity：HDMI, Rear & Front USB-C® 20Gb/s
  • Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
Specification Details
CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors
Chipset AMD X670
Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU
1 x M.2 connector (M2B_CPU), integrated in the CPU
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)(M2C_SB, M2D_SB)
- 4 x SATA 6Gb/s connectors
USB CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- Various USB ports available
Internal I/O Connectors Various internal connectors including power, fan, USB, audio, and headers
Back Panel Connectors Various connectors including USB, LAN, HDMI, audio, and more
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Unique Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System Support for Windows 11 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
